PIONEER Gold 48W

Beam Diameter
Beam Divergence
Analog Modulation

Operational Voltage

< 5,0mm
< 1,2mrad
0-5V up to 30kHz
110-265 VAC @ 1,7kW, 50-60Hz

Dimensions
Weight

300mm(H) x 750mm(W) x 420mm(L)
>85kg (without brackets)

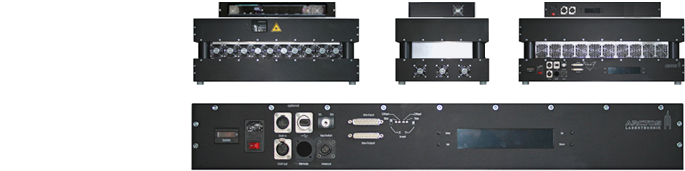

Signal Input-/Output
USB
DMX

ILDA Standard D-Sub 25p

optional
optional

Scanning System Standard
Scanning System Optional

Scanning Features


Manual inverse function

ARCTOS Mainboard

Blue LC-Display
Operational Temperature
Air-cooled system

CT 6800 / 35 kpps@8° with 1M0
CT 6215 / 60 kpps@8° with 3M0

Cambridge Technology with Servoamp
Internal scanner safety circuit
High speed 60.000 pps max. speed depend. on angle
x/y-axis; offset and size

Processor controlled
Digital test mode, digital colour adjustment/calibration
For internal function control
8°C up to 30°C [optimal operation temperature: 25°C]
Intelligent low noise thermal-management system
Automatic cooling/heating for optimal laser parameters
Cooling of heat-generating components and exceptional internal heat dissipation.

+  The new electric mainboard manufactured by ARCTOS allows many system features
+  Control of all internal operating voltages via blue LC Display
+  Reduced fan noise by analog fan-control
+  Faster service access
+  Gradual power supply start for all
+  "Softstart" for avoiding power peaks during switch-ON
+  DMX menu guidance (FB3-Series)
+  Auto mode for laser head disconnection
+  Sequential cooling/heating depending on temperature peaks
+  Shortened safety shutter speed time ca: 17msec
