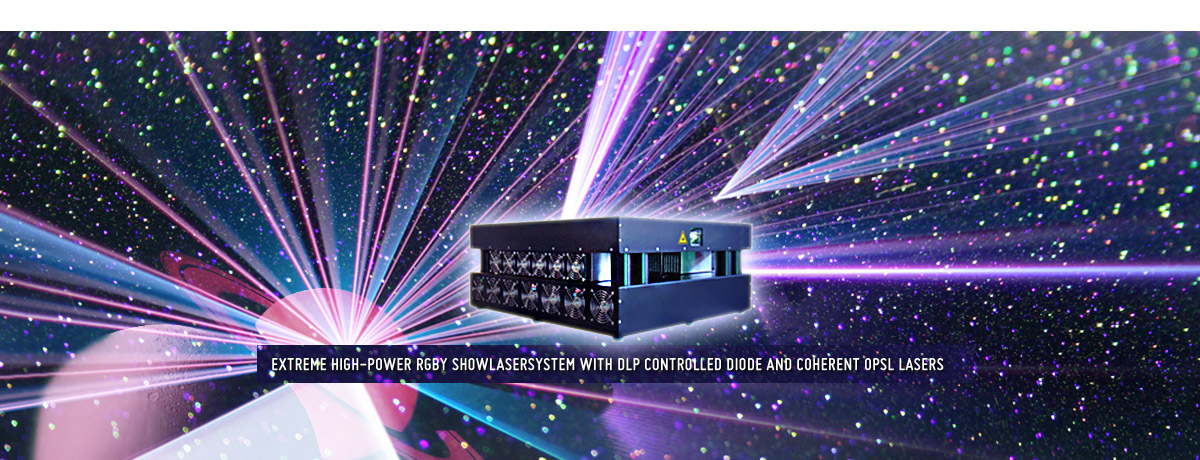

PIONEER Gold 64W

Our PIONEER Gold 64W incorporates all superlatives of laser power, brightness, visibility and colors. Incomparable and fascinating. Stunning beauty and dazzling power. The laser light of PIONEER 64W is shining from far like a real Supernova!

PIONEER Gold 64W

High Power Showlaser with 64W RGB+Y Laseroutput

MAXIMUM OUTPUT	64.0W
637nm ARC RED	> 10.0W
650nm ARC RED	> 10.0W
577nm YELLOW	> 12.0W (Coherent OPSL)
532nm GREEN	> 20.0W
445nm ARC BLUE	> 12.0W

Beam Diameter Beam Divergence Analog Modulation Operational Voltage	< 6,0mm < 1,2mrad 0-5V up to 30kHz 110-265 VAC @ 1,7kW, 50-60Hz

DIMENSIONS

Dimensions

390mm(H) x 715mm(W) x 600mm(L)

Signal Input/Output
Geometry

Color Settings

Scan Fail Safety

DMX 512
USB

ILDA Standard D-Sub 25p
X/Y-invert / -size / -position
+/10° fine image-rotation
Digital Color damping
Digital Color bypass
Up to 6 analog modulatable Color CHannels
On/Off

Size control
Internal Pangolin FB3 output card
Pangolin FB3 / Quick show remote
FB3 frame / show upload

TECHNICAL DATA

Scanning System Standard Scanning System Optional Scanning Features Manual inverse function ARCTOS Mainboard Blue LC-Display Operational Temperature Air-cooled system	CT 6800 / 35 kpps@8° with 1M0 CT 6215 / 60 kpps@8° with 3M0 Cambridge Technology with Servoamp Internal scanner safety circuit High speed 60.000 pps max. speed depend. on angle x/y-axis; offset and size Processor controlled Digital test mode, digital colour adjustment/calibration For internal function control 8°C up to 30°C [optimal operation temperature: 25°C] Intelligent low noise thermal-management system Automatic cooling/heating for optimal laser parameters Cooling of heat-generating components and exceptional internal heat dissipation.

Scanning System Standard
Scanning System Optional

Scanning Features

Manual inverse function

ARCTOS Mainboard

Blue LC-Display
Operational Temperature
Air-cooled system

CT 6800 / 35 kpps@8° with 1M0
CT 6215 / 60 kpps@8° with 3M0

Cambridge Technology with Servoamp
Internal scanner safety circuit
High speed 60.000 pps max. speed depend. on angle
x/y-axis; offset and size

Processor controlled
Digital test mode, digital colour adjustment/calibration
For internal function control
8°C up to 30°C [optimal operation temperature: 25°C]
Intelligent low noise thermal-management system
Automatic cooling/heating for optimal laser parameters
Cooling of heat-generating components and exceptional internal heat dissipation.

SYSTEM FEATURES

+ Compact solid housing made by ARCTOS
+ Integrated scanner plug`n play concept
+ Best stability and lifetime
+ Designed for laserprofessionals!
+ Dynamic Zone Safety
+ Energy Saving
+ Super Silent
+ ESD Protected Stabilized Switching Power Supplies
+ Microprocessor controlled
+ ARC-Modular construction
+ YOKE designed against shear forces
+ DMX Ready
+ Ethernet Ready

COMPACT AND SOLID HOUSING MADE BY ARCTOS

CNC-milled black anodized aluminium
Mechanical levitated design
Automatic cooling/heating for optimal laser parameters
Dust proof optical compartment
Maintenance free and long lifetime
Ultra rugged, compact and reliable housing design

LASER CONTROL & SAFETY

+ The new electric mainboard manufactured by ARCTOS allows many system features + Control of all internal operating voltages via blue LC Display + Reduced fan noise by analog fan-control + Faster service access + Gradual power supply start for all + "Softstart" for avoiding power peaks during switch-ON + DMX menu guidance (FB3-Series) + Auto mode for laser head disconnection + Sequential cooling/heating depending on temperature peaks + Shortened safety shutter speed time ca: 17msec

+ The new electric mainboard manufactured by ARCTOS allows many system features
+ Control of all internal operating voltages via blue LC Display
+ Reduced fan noise by analog fan-control
+ Faster service access
+ Gradual power supply start for all
+ "Softstart" for avoiding power peaks during switch-ON
+ DMX menu guidance (FB3-Series)
+ Auto mode for laser head disconnection
+ Sequential cooling/heating depending on temperature peaks
+ Shortened safety shutter speed time ca: 17msec
