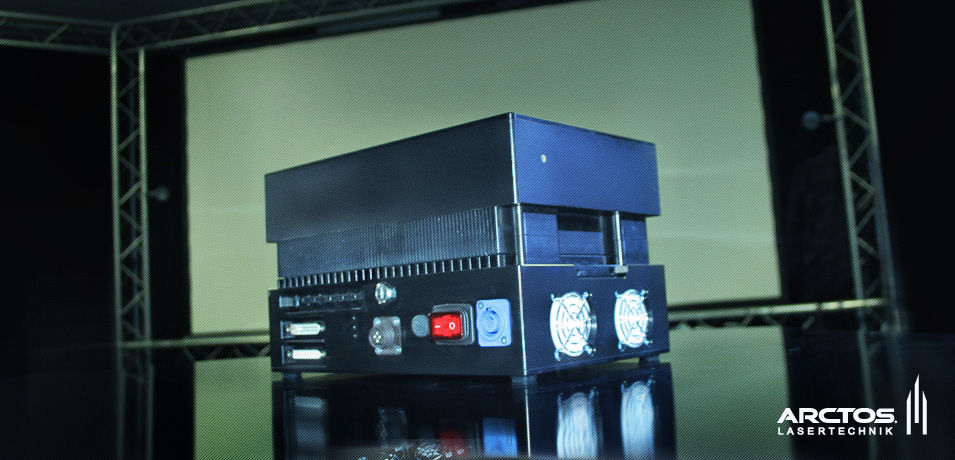

REGUS Lasershow System

Our REGUS serially started in the early 2004-2005 and lead to its formation and final design, which is fundamental  for  all ARCTOS following laser series as ARCTOS signature - distinctive and unique.
This masterpiece design served as a model word wide and is favored for its stability and solidness. The form and its substance are one unity.

Great beam quality and solid design. True laser power measurement after output window, without tolerances, pure and royal.

REGUS 7.4W




 MAXIMUM OUTPUT

7.4W

 637nm ARC RED

2.4W

 520nm GREEN

1.7W

 445nm ARC BLUE

3.3W



Beam Size
Beam Divergence
Analog Modulation
Operational Voltage

< 4mm
< 0,65mrad
0-5V up to 30kHz
110-230 VAC @ < 400W, 50-60Hz



DIMENSIONS

Dimensions
Weight

185mm(H) x 195mm(W) x 290mm(L)
>12kg (without brackets)

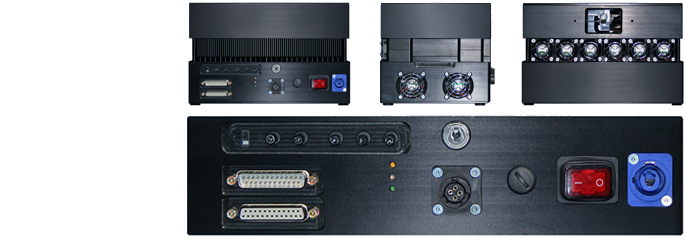

Signal Input-/ Output
USB
DMX

ILDA Standard D-Sub 25p

optional
optional

TECHNICAL DATA

Scanning System Standard

Scanning Features


Manual inverse function
Signal Input/Output

Operational Temperature
Air-cooled system

CT 6800 / 35 kpps@8° with 1M0

Cambridge Technology incl. ARCTOS High-Speed driver
Internal scanner safety circuit
High speed 60.000 pps max. speed depend. on angle
x/y-axis; offset and size
ILDA Standard D-Sub 25p

8°C up to 30°C [optimal operation temperature: 25°C]
Intelligent low noise thermal-management system
Automatic cooling/heating for optimal laser parameters



COMPACT AND SOLID HOUSING MADE BY ARCTOS

CNC-milled black anodized aluminium
Mechanical levitated design
Automatic cooling/heating for optimal laser parameters
Dust proof optical compartment
Maintenance free and long lifetime
Ultra rugged, compact and reliable housing design

SYSTEM FEATURES

+ Compact solid housing made by ARCTOS
+ Integrated scanner plug`n play concept
+ Best stability and lifetime
+ Designed for laserprofessionals!
+ Dynamic Zone Safety
+ Energy Saving
+ Super Silent
+ Microprocessor controlled
+ ARC-Modular construction
+ YOKE designed against shear forces

LASER CONTROL & SAFETY

+  Reduced fan noise by analog fan-control
+  Faster service access
+  Gradual power supply start for all
+  "Softstart" for avoiding power peaks during switch-ON
+  Auto mode for laser head disconnection
+  Sequential cooling/heating depending on temperature peaks
+  Shortened safety shutter speed time ca: 17msek

ACCESSORIES & EXTRAS

The ARC DIODE Series is available with additional Grating Box Module - Penthouse Edition
ARC-Remote control unit incl. CDRH-standard & time delay max.cable length 60m
Interlock AMP safety-standard for illuminated "Emergency"
Integrated Pangolin Flashback
RGB potentiometers
Gratings (holographic mirrors)
Customized Climate box for outdoor installations
Customized Flightcases Made by Amptown
